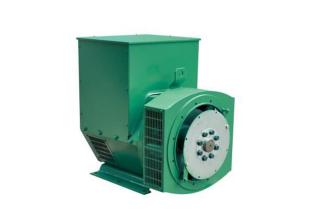

100-250KVA 4 Poles Brushless

As the best China 100-250KVA 4 Poles Brushless supplier,MING JIE provides quality 100-250KVA 4 Poles Brushless to global clients

Make Order Contact Us
Tel: 0086-025-57292799
INFORMATION
PARAMETER

  • Voltage:120~690V

  • Rated Capacity:100~250KVA

  • Rated Power:80~200KW

WHI274 series

  • ●Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1
    ●Single or double bearings are available, options for all kinds of adaptors and coupling disc
    ●12-end reconnectable winding terminals to get different voltages
    ●Standard “H” insulation class
    ●Convenient installation and maintenance for rotated diodes and adaptor connected bolts
    ● Standard sealed maintenance-free bearings

Options

  • ● Air filter
    ● Droop CT
    ● PMG excitation system
    ● Winding RTD
    ● IP23 or IP22 Protection
    ● Anti-condensation heater
    ● Winding protection thermistor and relay
    ● The auxiliary winding excitation system

WATTEK ALTERNATOR  SPECIFICATION

VOLTAGE

4 POLES

4 POLES

50Hz 1500rpm

60Hz 1800rpm

STAR-SERIES

380

400

415

416

440

480

STAR-PARALLEL

190

200

208

208

220

240

TRIANGLE-SERIES

220

230

240

240

254

277

WHI274C

RATED CAPACITY (kVA)

94.0

94.0

94.0

106

106

106

RATED POWER (kW)

80.0

80.0

80.0

90

90

90

EFFICIENCY (％)

89.9

90.0

90.0

90.2

90.5

90.6

WHI274D

RATED CAPACITY (kVA)

113

113

113

138

138

138

RATED POWER (kW)

90

90

90

110

110

110

EFFICIENCY (％)

90.0

90.3

90.3

90.3

90.5

90.9

WHI274E

RATED CAPACITY (kVA)

125

125

125

150.0

155.0

155.0

RATED POWER (kW)

100.0

100.0

100.0

120

120

120

EFFICIENCY (％)

90.3

90.8

91.0

90.4

90.7

91.1

WHI274F

RATED CAPACITY (kVA)

150

150

150

175

175

175

RATED POWER (kW)

120

120

120

140

140

140

EFFICIENCY (％)

91.9

92.2

92.2

92.3

92.4

92.5

WHI274G

RATED CAPACITY (kVA)

188

188

188

225

225

225

RATED POWER (kW)

150

150

150

180

180

180

EFFICIENCY (％)

92.2

92.2

92.3

92.4

92.4

92.5

WHI274H

RATED CAPACITY (kVA)

200

200

200

238

238

238

RATED POWER (kW)

160

160

160

190

190

190

EFFICIENCY (％)

92.2

92.2

92.3

92.4

92.4

92.5

WHI274J

RATED CAPACITY (kVA)

230

230

230

269

281

300

RATED POWER (kW)

184

184

184

215.2

WHI224.8

240

EFFICIENCY (％)

92.4

92.4

92.6

92.8

92.8

92.8

WHI274K

RATED CAPACITY (kVA)

250

250

250

291

299

312.5

RATED POWER (kW)

200

200

200

232.8

239.2

250

EFFICIENCY (％)

92.5

92.8

92.8

92.6

92.7

92.9

  • The alternator has been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000 meters above sea level. The power factor is 0.8, and the level of raising temperature is H class  (125℃)
