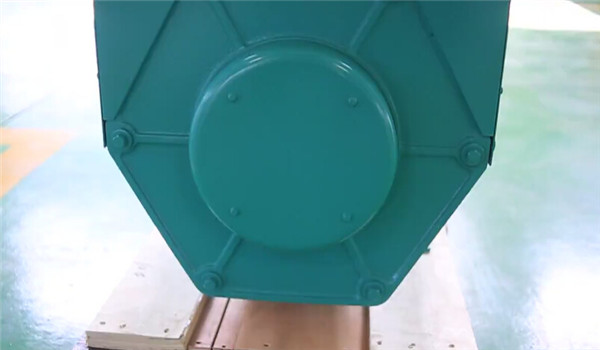

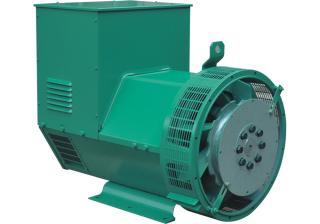

42.5-88KVA 4 Poles Brushless

Quality 42.5-88KVA 4 Poles Brushless suppliers & exporter - all products made in China.

Make Order Contact Us
Tel: 0086-025-57292799
INFORMATION
PARAMETER

  • Voltage:120~690V

  • Rated Capacity:42.5~88KVA

  • Rated Power:34~70KW

WHI224 series

  • ● Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1
    ● Single or double bearings are available, options for all kinds of adaptors and coupling disc
    ● 12-end reconnectable winding terminals to get different voltages
    ● Standard “H” insulation class
    ● Convenient installation and maintenance for rotated diodes and adaptor connected bolts
    ● Standard sealed maintenance-free bearings

Options

  • ● Air filter
    ● Droop CT
    ● PMG excitation system
    ● Winding RTD
    ● IP23 or IP22 Protection
    ● Anti-condensation heater
    ● Winding protection thermistor and relay
    ● The auxiliary winding excitation system

WATTEK ALTERNATOR SPECIFICATION

VOLTAGE

4 POLES

4 POLES

50Hz 1500rpm

60Hz 1800rpm

STAR-SERIES

380

400

415

416

440

480

STAR-PARALLEL

190

200

208

208

220

240

TRIANGLE-SERIES

220

230

240

240

254

277

WHI224C

RATED CAPACITY (kVA)

42.5

42.5

42.5

50

52.5

55

RATED POWER (kW)

34

34

34

40

42

44

EFFICIENCY (％)

86.5

87.1

87.4

87.2

87.5

87.9

WHI224D

RATED CAPACITY (kVA)

50

50

50

62.5

62.5

62.5

RATED POWER (kW)

40

40

40

48

50

52

EFFICIENCY (％)

87.8

88.2

88.5

88.2

88.6

88.8

WHI224E

RATED CAPACITY (kVA)

62.5

62.5

62.5

78

78

78

RATED POWER (kW)

50.0

50.0

50.0

62.5

62.5

62.5

EFFICIENCY (％)

88.1

88.1

88.9

88.9

89.2

89.4

WHI224F

RATED CAPACITY (kVA)

75.0

75.0

75.0

83.8

87.5

93.8

RATED POWER (kW)

60.0

60.0

60.0

67

70

75

EFFICIENCY (％)

89.6

89.9

90.1

90.0

90.3

90.6

WHI224G

RATED CAPACITY (kVA)

87.5

87.5

87.5

109

109

109

RATED POWER (kW)

70

70

70

87.5

87.5

87.5

EFFICIENCY (％)

89.9

90.2

90.4

90.6

90.8

91.0

  • The alternator has been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000 meters above sea level. The power factor is 0.8, and the level of raising temperature is H class  (125℃)
