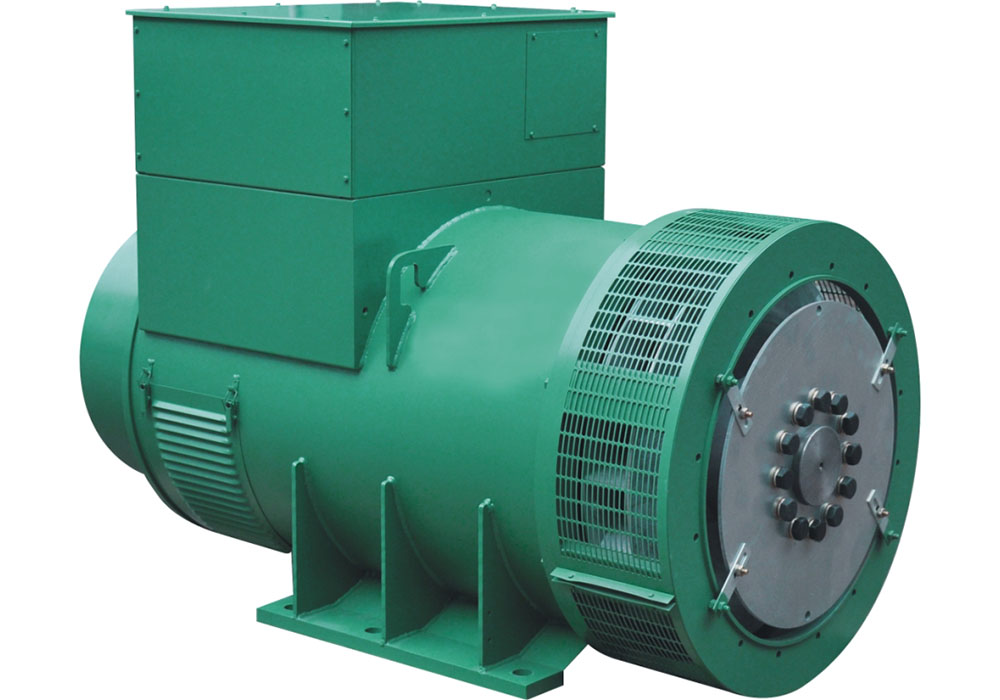

750-1250KVA 4 Poles Brushless

Quality 750-1250KVA 4 Poles Brushless suppliers & exporter - all products made in China.

Make Order Contact Us
Tel: 0086-025-57292799
INFORMATION
PARAMETER

  • Voltage:120~690V

  • Rated Capacity:750~1250KVA

  • Rated Power:600~1000KW

WHI 6 series

  • ●Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1
    ●Single or double bearings are available, options for all kinds of adaptors and coupling disc
    ●12-end reconnectable winding terminals to get different voltages
    ●Standard “H” insulation class
    ●Convenient installation and maintenance for rotated diodes and adaptor connected bolts
    ●Standard sealed maintenance-free bearings

Options

  • ●Air filter
    ●Droop CT
    ●PMG excitation system
    ●Winding RTD and bearing RTD
    ●IP23 or IP22 Protection
    ●Anti-condensation heater
    ●Winding protection thermistor and relay
    ●Double bearing transition joint

WATTEK ALTERNATOR SPECIFICATION

VOLTAGE

4 POLES

4 POLES

50Hz 1500rpm

60Hz 1800rpm

STAR-SERIES

380

400

415

416

440

480

STAR-PARALLEL

190

200

208

208

220

240

TRIANGLE-SERIES

220

230

240

240

254

277

WHI 6C

RATED CAPACITY (kVA)

800

810

800

925

963

1000

RATED POWER (kW)

640

640

640

740

770

800

EFFICIENCY (％)

94.1

94.4

94.5

94.3

94.4

94.6

WHI 6D

RATED CAPACITY (kVA)

912.5

944

912.5

1063

1075

1125

RATED POWER (kW)

730

755

730

850

860

900

EFFICIENCY (％)

94.8

95.0

95.1

94.9

95.1

95.2

WHI 6E

RATED CAPACITY (kVA)

1025

1063

1025

1225

1275

1325

RATED POWER (kW)

820

850

850

980

1020

1060

EFFICIENCY (％)

95.1

95.3

95.5

95.1

95.2

95.3

WHI 6F

RATED CAPACITY (kVA)

1138

1175

1138

1250

1313

1375

RATED POWER (kW)

910

940

910

1000

1050

1100

EFFICIENCY (％)

95.1

95.2

95.5

95.1

95.2

95.5

WHI 6G

RATED CAPACITY (kVA)

1260

1315

1350

1525

1585

1630

RATED POWER (kW)

1008

1052

1080

1220

1268

1304

EFFICIENCY (％)

94.8

94.6

94.5

95.0

94.9

94.8

  • The alternator has been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000 meters above sea level. The power factor is 0.8, and the level of raising temperature is H class  (125℃)
