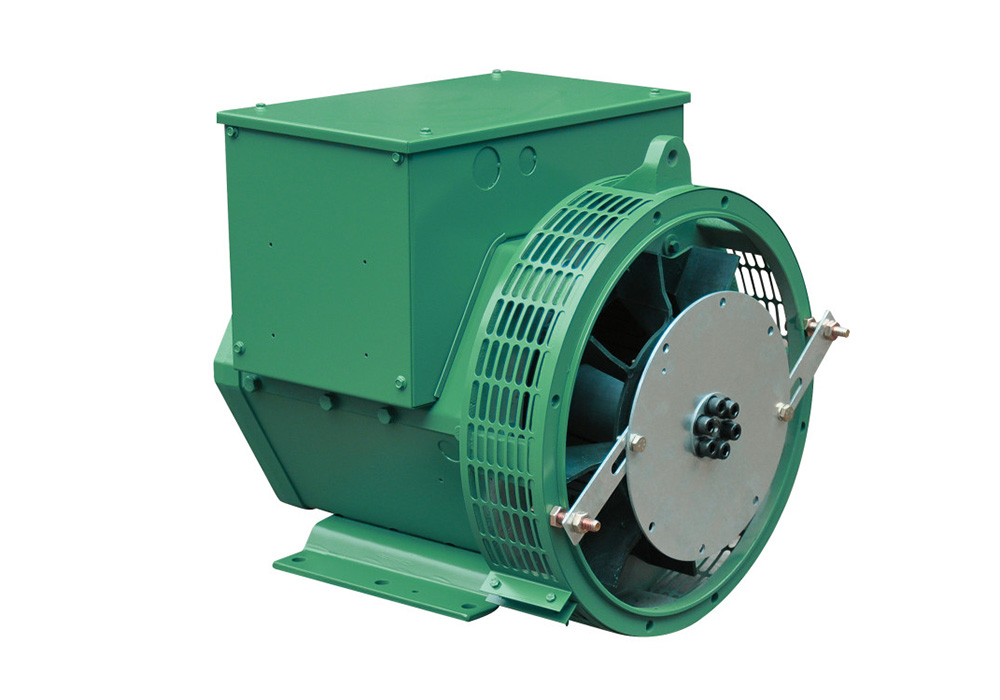

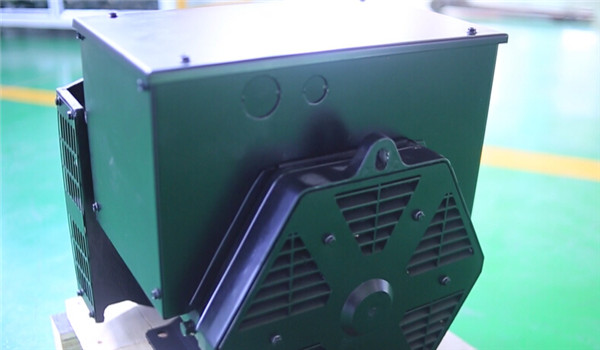

Quality 8.1-16KVA 4 Poles Brushless suppliers & exporter - all products made in China.
●Comply with the most common standard in terms of GB755, EN ISO 12100, EN 12601, EN 60204-1
●Single or double bearings are available, options for all kinds of adaptors and coupling disc
●12-end reconnectable winding terminals to get different voltages
●Standard “H” insulation class
●Convenient installation and maintenance for rotated diodes and adaptor connected bolts
●Standard sealed maintenance-free bearings
●Air filter
●Droop CT
●Winding RTD
●IP23 or IP22 Protection
●Anti-condensation heater
●Winding protection thermistor and relay
|
VOLTAGE |
4 POLES |
4 POLES |
|||||
|
50Hz 1500rpm |
60Hz 1800rpm |
||||||
|
STAR-SERIES |
380 |
400 |
415 |
416 |
440 |
480 |
|
|
STAR-PARALLEL |
190 |
200 |
208 |
208 |
220 |
240 |
|
|
TRIANGLE-SERIES |
220 |
230 |
240 |
240 |
254 |
277 |
|
|
WHI164A |
RATED CAPACITY (kVA) |
8.1 |
8.1 |
8.1 |
9.6 |
10.2 |
10.2 |
|
RATED POWER (kW) |
6.5 |
6.5 |
6.5 |
7.7 |
8 |
8 |
|
|
EFFICIENCY (％) |
75.6 |
76.2 |
76.6 |
76.3 |
76.9 |
77.4 |
|
|
WHI164B |
RATED CAPACITY (kVA) |
11 |
11 |
11 |
13.8 |
13.8 |
13.8 |
|
RATED POWER (kW) |
8.8 |
8.8 |
8.8 |
11 |
11 |
11 |
|
|
EFFICIENCY (％) |
78.8 |
79.4 |
79.8 |
79.4 |
80.0 |
80.0 |
|
|
WHI164C |
RATED CAPACITY (kVA) |
13.5 |
13.5 |
13.5 |
17 |
17 |
17 |
|
RATED POWER (kW) |
10.8 |
10.8 |
10.8 |
13.5 |
13.5 |
13.5 |
|
|
EFFICIENCY (％) |
80.0 |
80.7 |
81.0 |
80.7 |
81.3 |
81.7 |
|
|
WHI164D |
RATED CAPACITY (kVA) |
16 |
16 |
16 |
20 |
20 |
20 |
|
RATED POWER (kW) |
12.8 |
12.8 |
12.8 |
16 |
16 |
16 |
|
|
EFFICIENCY (％) |
81.0 |
81.6 |
81.9 |
81.7 |
82.2 |
82.7 |
|
The alternator has been designed for use in a maximum ambient temperature of 40℃ and altitude less than 1000 meters above sea level. The power factor is 0.8, and the level of raising temperature is H class (125℃)
